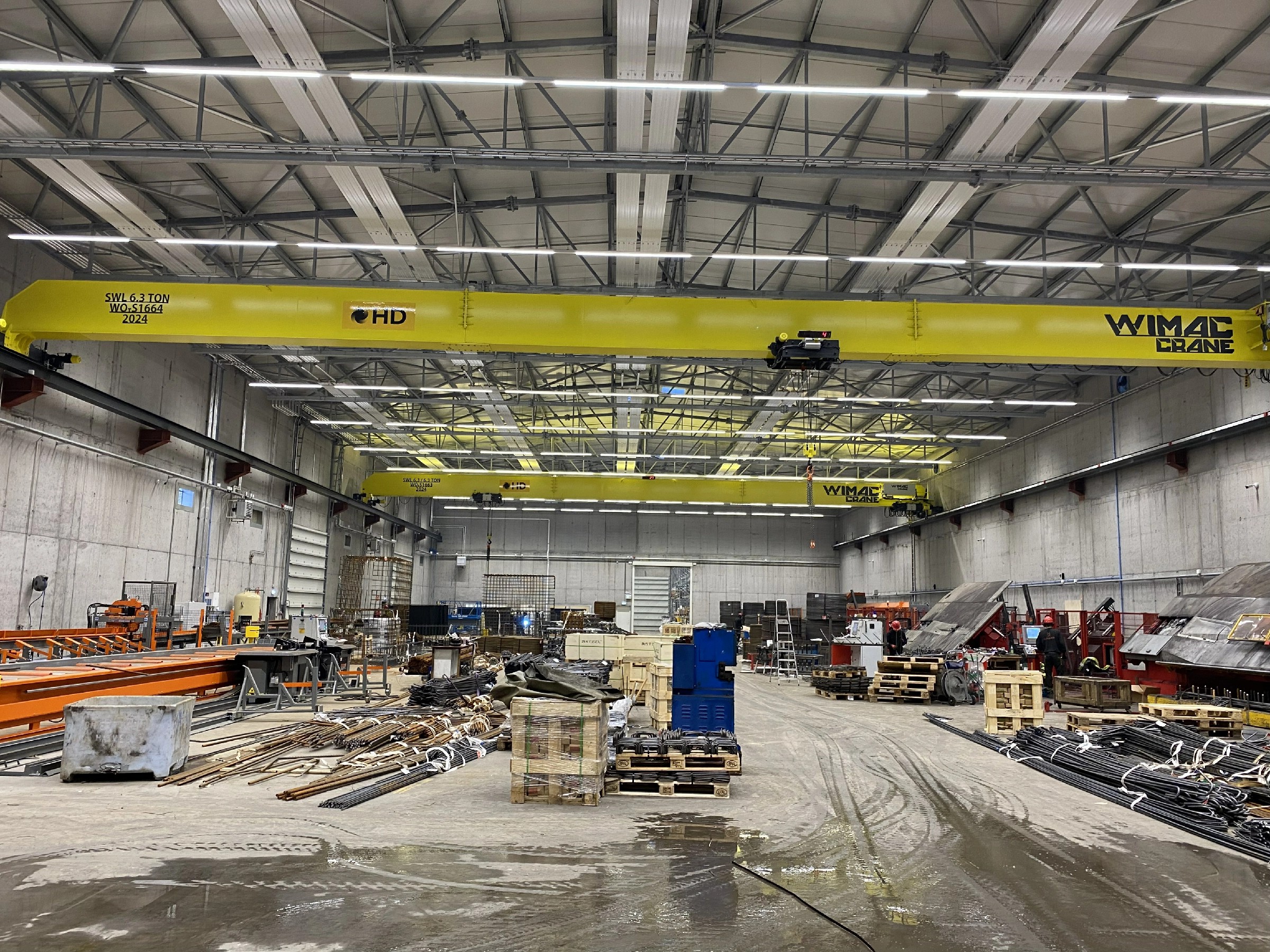

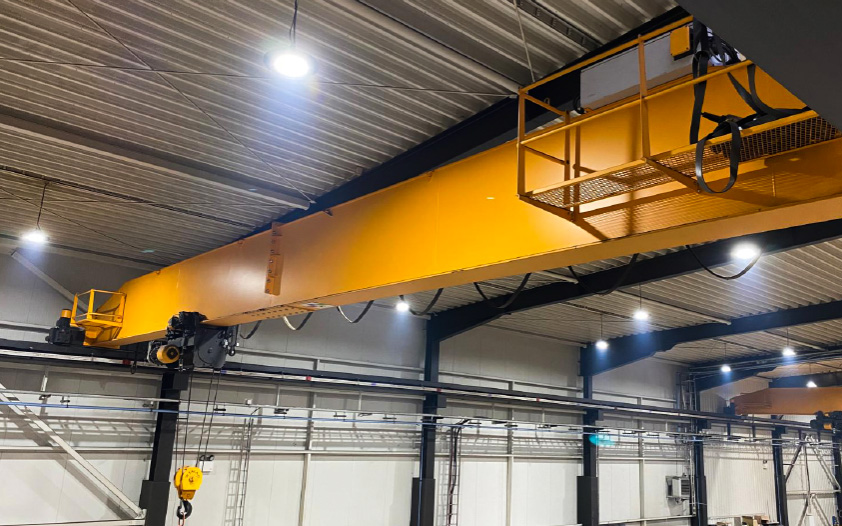

Single Girder Overhead Cranes
These single girder overhead cranes, which are very easy to install and use in almost all industrial environments, can be produced with a capacity of up to 250 tons. They work quietly and do great things with small sizes. It provides safe and precise transportation and positioning of heavy loads. Thanks to its design flexibility, it provides ergonomic and economical solutions for planned or existing use locations.
WIMAC CRANE roof cranes are designed and manufactured to provide high operation performance and maximum uptime. In crane design, FEM, ISO, DIN, etc. working classes according to their norms are one of the important design parameters.
With its modular structure, it saves time by installing it easily and quickly. Thus, operations will not stop for a long time and use can be started as soon as possible. It provides high accessibility for safe control and maintenance. Minimizes maintenance costs with quality and correctly selected components.
These bridge cranes are also convenient for the use of more than one crane trolley on it. These equipment can move independently of each other at any time simultaneously with each other when desired with the controls.
Standard Features
1. Single Bridge Girder
2. End Carriage Unit for Bridge Travelling
3. Crane Trolley
4. Hook Block
5. Electrical Panel and Electrical Installation
6. Walking Path
7. Wired Control (Pendant) and Wired Control Line (Pendant Track)
8. Wireless Control
9. Festoon System
All crane types produced by WIMAC CRANE have two controls: a wired (pendant) control and a wireless control. Double-stage buttons are available for slow and fast movements on all crane controls used. Tandem and synchronous movements can also be provided with these controls. Additional functions can also be added if desired.
The single girder overhead crane electrical panel is an improved panel and the equipment to be used is selected taking into account the system compatibility. Crane Electrical panels are manufactured with precision workmanship and according to international standards by determining protection classes according to the field of use. The boards are designed in a simple way and have all the labeling that makes it easy to understand.
The crane used offers smooth take-off and stop movements with speed controllers. In addition, many parameters such as speeds in all directions, braking times can also be adjusted with these devices.
For single girder overhead cranes, special sandblasting, primer and paint applications can be applied to the working areas to increase the crane life. If requested, environmental compatibility can also be achieved by taking into account the corporate colors belonging to the customers.
Equipment and features such as operator cabin, container loading apparatus, type C hook, projector lamps can be added to double girder overhead cranes. These cranes can also be produced as Ex-Proof cranes.
Usage Area
1. Industrial manufacturing plants
2. Mining industry
3. Foundry factories
4. Shipyards
5. Warehouses
6. Ports
7. Logistics Warehouses
8. Construction Industry
9. Construction Centers
10. Heavy Industry Areas
11. Maritime Sector/Shipyards
12. Timber Industry
13. Silos
