Coil Tongs
Our modular coil tong system represents a major breakthrough in heavy-duty lifting technology, replacing traditional welded structures with a high-precision bolted design. Engineered for peak efficiency and long-term durability, the system allows for rapid replacement of wear-prone components, significantly reducing downtime and maintenance costs.
Suspension Pin
Safety Lock
Signal Light
Rotation Mechanism

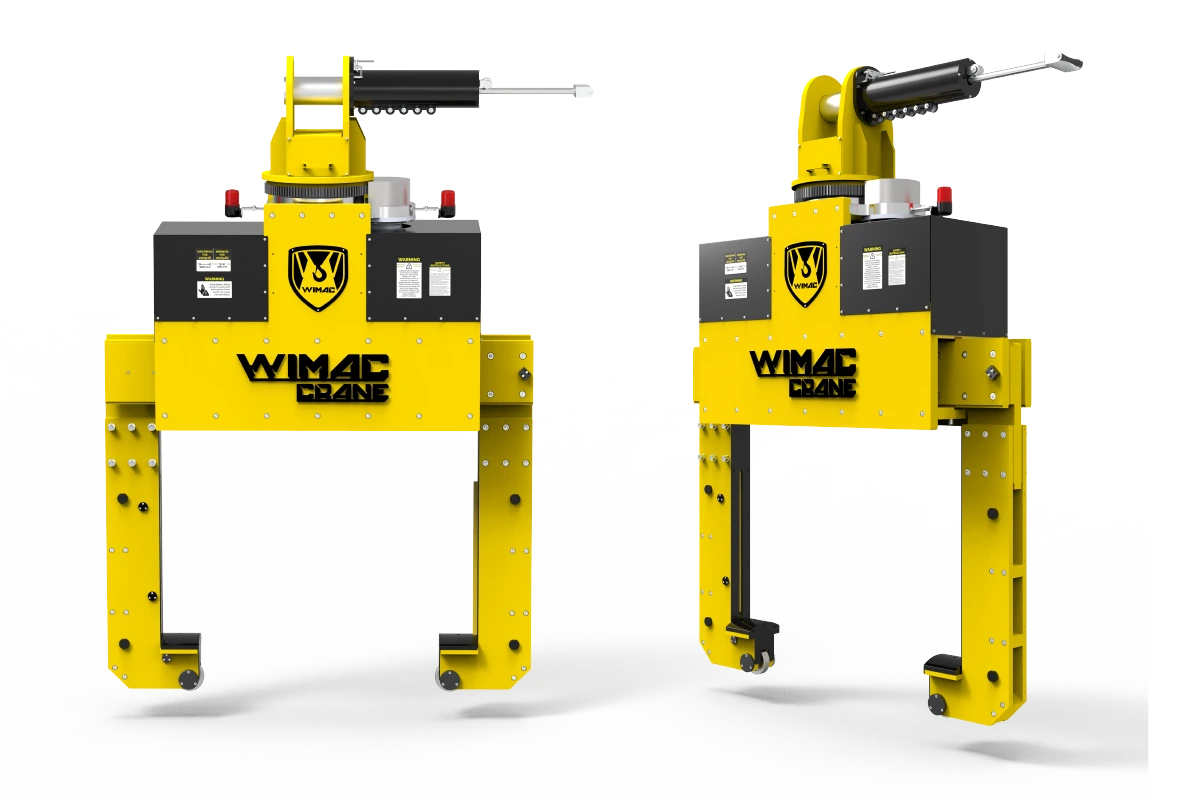

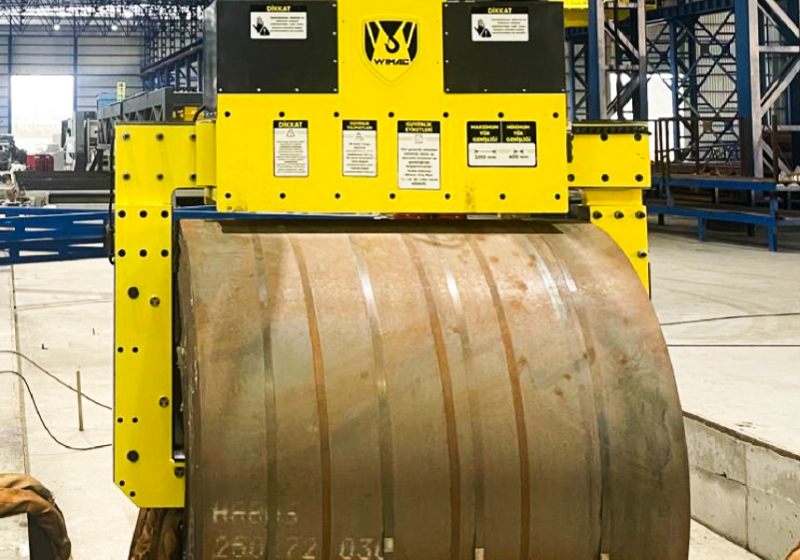

The coil tong is a material handling device designed for lifting heavy steel coils. Designed and manufactured in accordance with EN 13155 and ASME B30.20.
Key Features & Advantages
Capacity 10 t – 100 t
Coil width 300 – 2500 mm
360° continuous motorized rotation
Electromechanical drive system (Motor + Gearbox + Rack/Pinion)
Duty class FEM 2m / 3m / 4m (ISO M5 – M8)
Coil temperature 0–600°C
Jaw interface: Steel, cast polyamide and polyurethane
Compliant with EN 13155 – ASME B30.20 – DIN 15018
General Technical Specifications
| Parameter | Value |
|---|---|
| Capacity | 10 t – 100 t |
| Coil Width | 300 mm – 2500 mm |
| Coil Temperature | 0–600°C |
| Ambient Temperature | -40°C to +70°C |
| Drive System | Electromechanical (Motor + Gearbox + Rack/Pinion) |
| Rotation | 360° continuous motorized rotation |
| Control Voltage | 24V / 48V / 110V / 220V |
| Duty Class | FEM 2m / 3m / 4m (ISO M5 – M8) |
| Standards & Compliance | EN 13155 – ASME B30.20 – DIN 15018 |
| Jaw Interface | Steel, cast polyamide and polyurethane |
Custom configurations are available on request to meet specific project requirements.
