Lifting Beams
Wimac designs and manufactures a complete range of custom lifting beams — from standard adjustable bail beams to heavy-duty systems for gas turbines and pipe handling. Each solution is developed in accordance with EN 13155:2003+A2:2009 and the Machinery Directive 2006/42/EC.
01

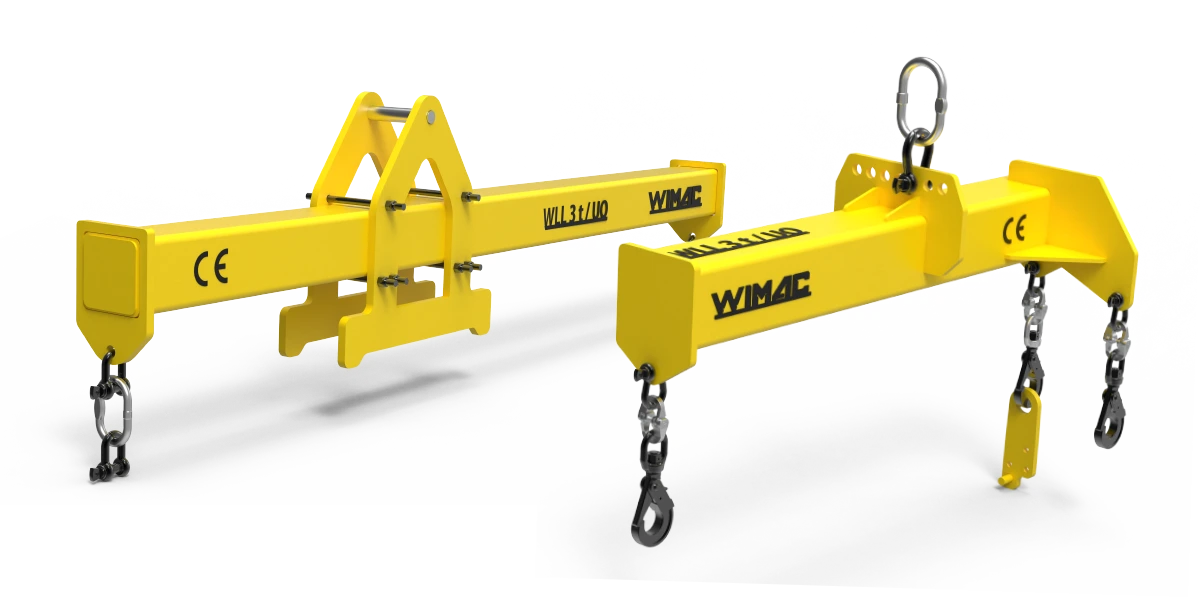

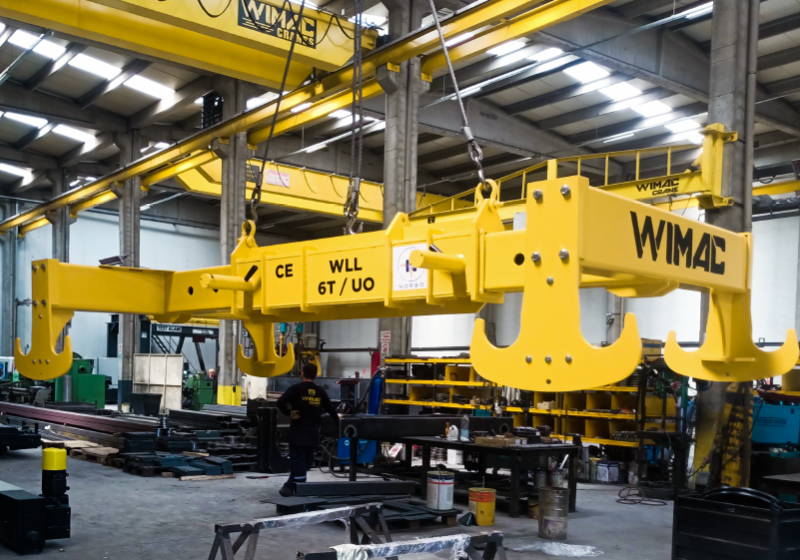

Adjustable Bail Lifting Beam
Adjustable Bail
Attachment Lugs with Load Hooks
Attachment Lugs with Load Hooks
Lifting beams are designed to provide safe and balanced lifting by allowing manual repositioning of the top bail to align with the load's center of gravity, ensuring stable load distribution. Designed and manufactured in accordance with EN 13155:2003+A2:2009 and the essential health and safety requirements of the Machinery Directive 2006/42/EC.
Versatile Attachment Options: 2 or 3-point load connection configurations for diverse lifting scenarios.
Center of Gravity Optimization: Adjustable connection points for precise alignment with the load's CoG.
Advanced Beam Geometry: Optimized design ensuring uniform load distribution, especially for asymmetrical loads.
Stress Reduction System: Multi-point lifting configuration designed to minimize structural stress and load deformation.
Enhanced Operational Stability: Robust construction preventing load rotation and unstable movement during lifting.
02

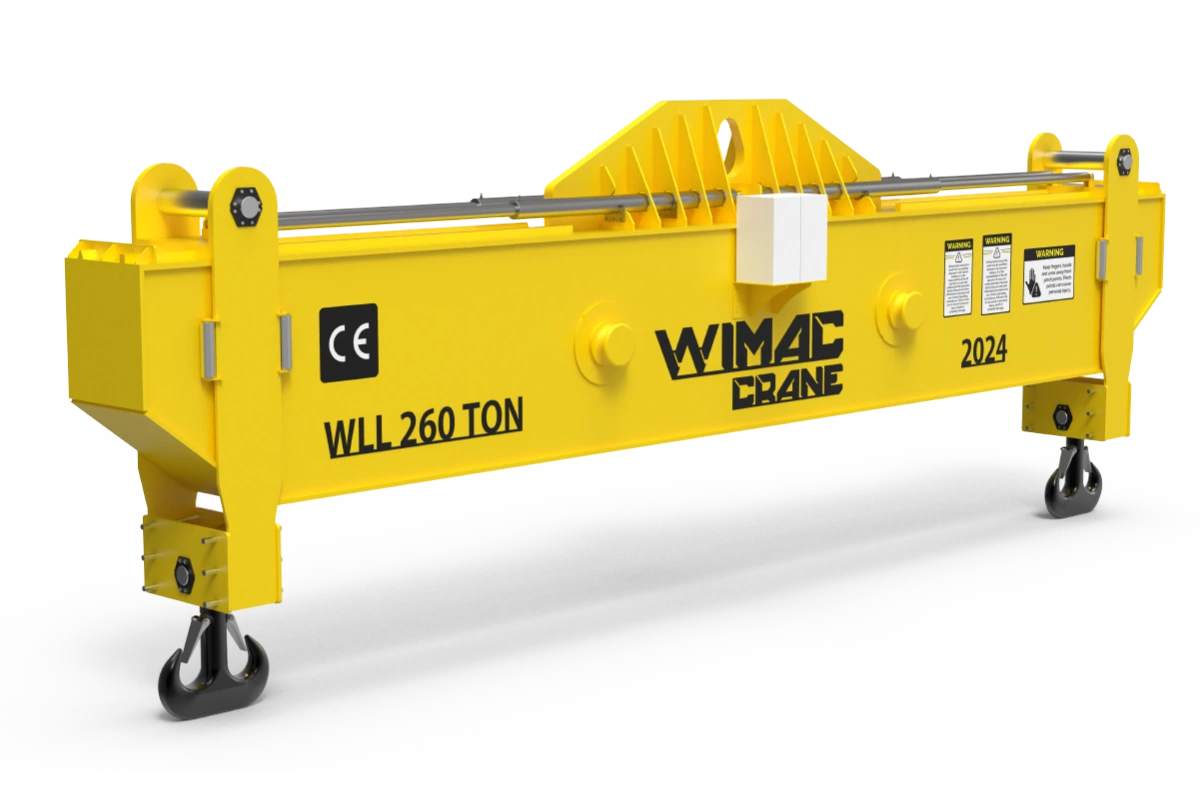

Heavy-Duty Gas Turbine Lifting Beam
Load Attachment Hooks
Custom-engineered for the safe and stable handling of gas turbines, this heavy-duty lifting beam features an automatically adjustable hook span. This allows for the precise and secure lifting of turbines with diverse lifting points. The entire system is precision-engineered to seamlessly adapt to 7 distinct lifting configurations.
Key Features
Custom Design: Specifically engineered for gas turbine lifting operations, prioritizing safety and stability during transport.
Automated Precision: Features an automatically adjustable hook span mechanism for precise positioning relative to the load.
Versatile Configurations: Designed to accommodate 7 distinct lifting geometries for maximum operational flexibility.
Structural Integrity: Built from high-strength structural steel ensuring minimum deflection at WLL — WLL 260 TON.
System Compatibility: Fully compatible with heavy-duty EOT (Electric Overhead Traveling) and Gantry crane systems.
Operational Safety: Engineered to minimize structural stress and provide balanced, controlled movement in demanding industrial environments.
03

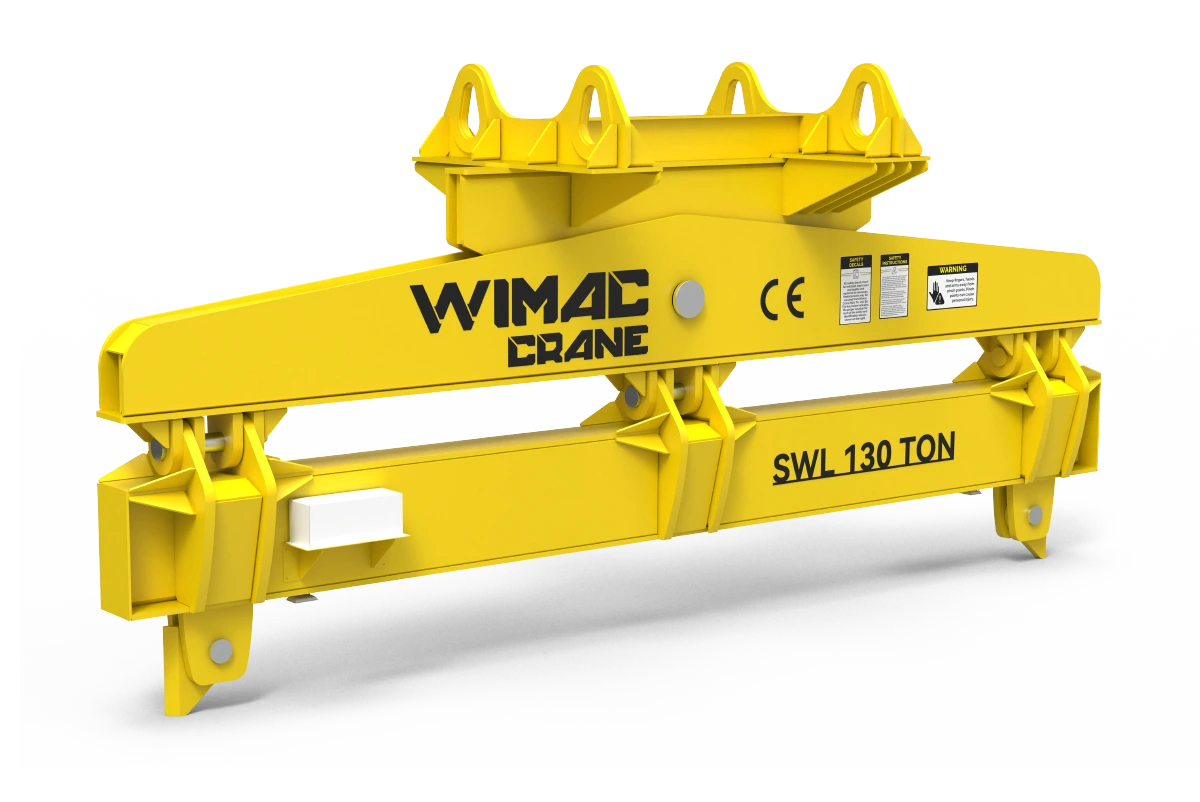

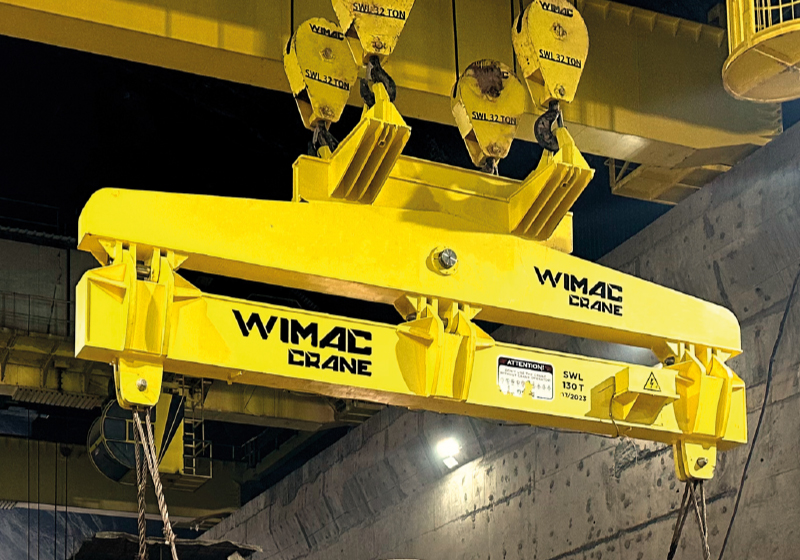

Heavy-Duty Pipe Handling Beam
Attachment Lugs

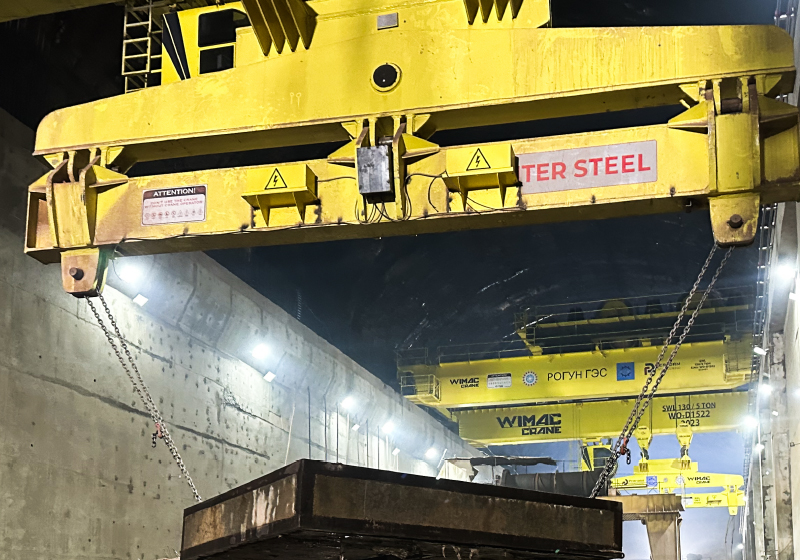

This adjustable lifting beam is specifically engineered for the secure handling and lowering of steel pipes during deep-well operations. Featuring dual-axis flexibility, a four-point balanced lifting system and high-strength construction, it ensures maximum safety and operational control for heavy-duty applications.
Deep-Well Operation: Specifically engineered for the safe lowering of steel pipes to depths of approximately 230 metres.
Dual-Axis Flexibility: Mechanical design allowing motion in two axes, ensuring precise orientation and controlled load handling.
Balanced Load Distribution: Equipped with four lifting lugs ensuring even weight distribution during lowering operations — SWL 130 TON.
High-Performance Material: Manufactured from P355ML1 high-strength steel, designed for safe operation in temperatures from -40°C to +40°C.
FEA Optimized: Structural integrity and stress calculations optimized based on Finite Element Analysis (FEA) results.
100% NDT Testing: Quality assured through 100% Visual Testing (VT) and 100% Magnetic Particle / Penetrant Testing (MT/PT).
CE Compliance: Fully compliant with CE standards for maximum safety and reliability in heavy-duty industrial applications.
04

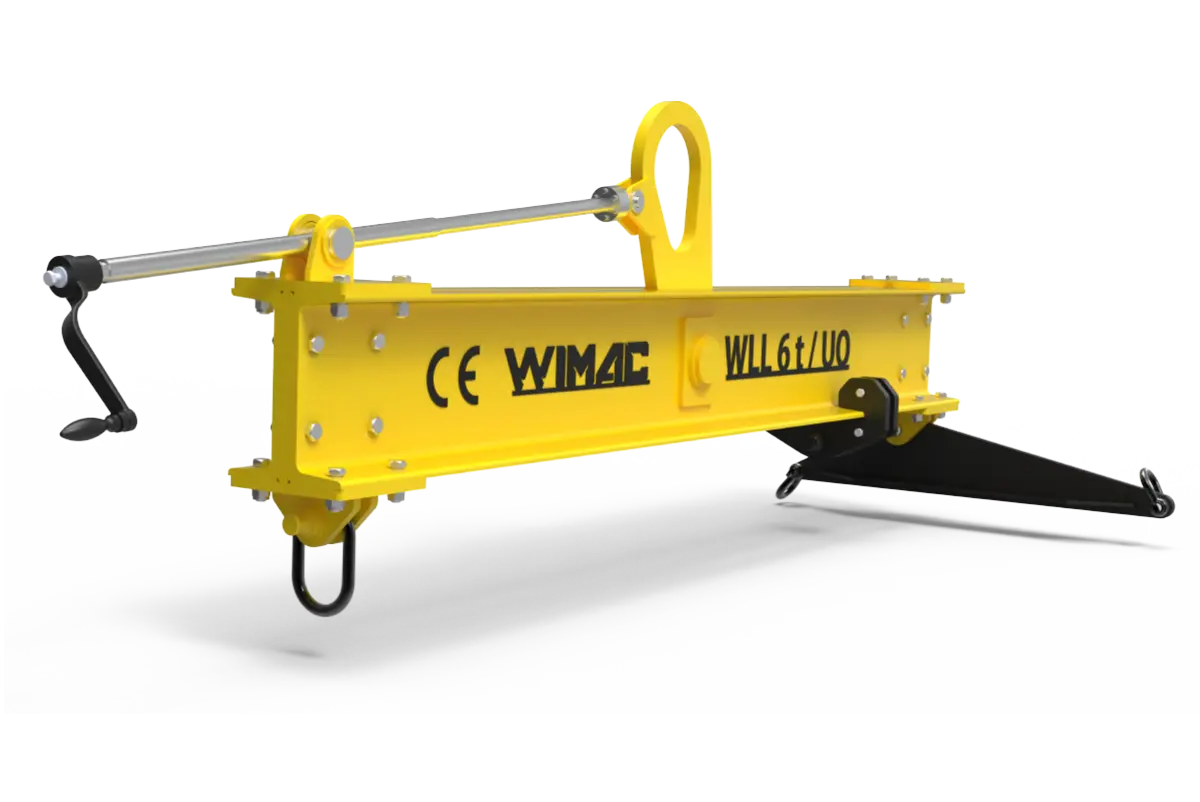

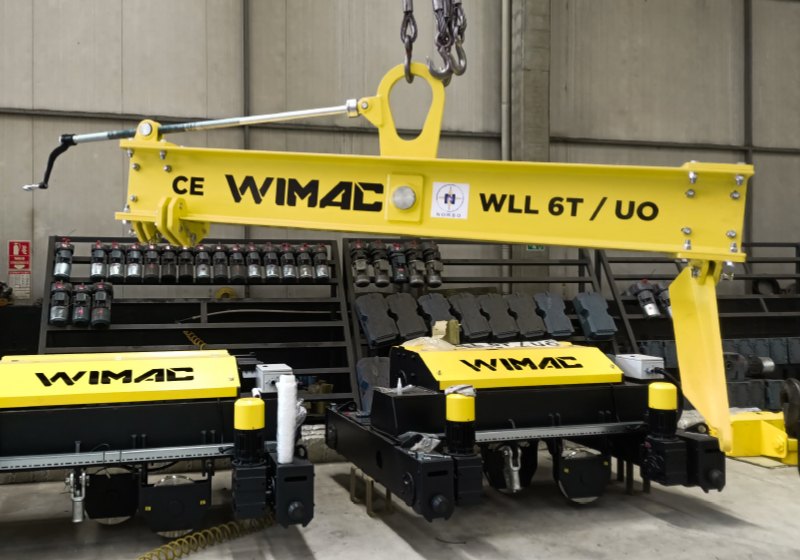

Load Leveling Beam
Hand Crank
Load Attachment Point
Balancing Arm
The Load Leveling Beam (Mechanical Type) is designed for the safe and accurate handling of uneven or off-center loads. Its robust beam structure ensures reliable load transfer while maintaining stability during lifting operations. Designed and manufactured in accordance with EN 13155:2003+A2:2009 and the Machinery Directive 2006/42/EC.
This Mechanical Load Balancing Apparatus is engineered for high-precision industrial lifting, featuring a manual screw-adjustment mechanism that allows the precise, gradual balancing of suspended loads. By eliminating the need to re-rig the load or reposition the crane hook, the system provides a highly efficient and stable solution for handling complex geometries or shifting centers of gravity. Its robust steel construction ensures secure positioning and repeatable performance, making it ideal for environments where safety and controlled incremental leveling are critical.
Key Features
Safe handling of uneven or off-center loads — WLL 6t / U0
Manual screw-adjustment mechanism for precise incremental balancing under load
Eliminates the need to re-rig the load or reposition the crane hook
Ideal for complex geometries and shifting centers of gravity
Robust steel construction — secure positioning and repeatable performance
